Home /Products/Tractor Mounted Borewell Machine/borewell water well drilling rig machine price for sale

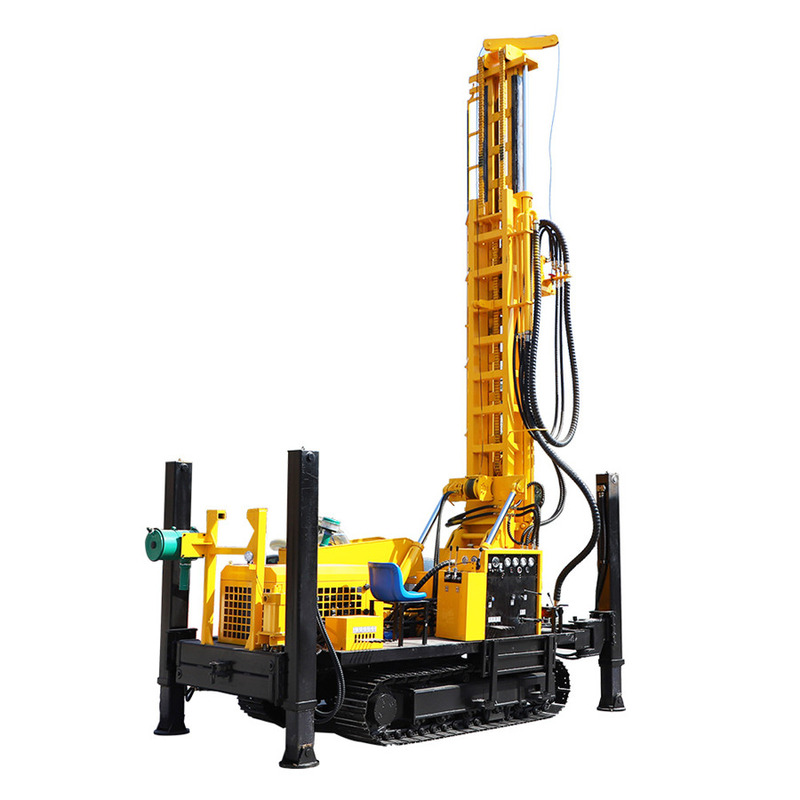

borewell water well drilling rig machine price for sale

1 Set
MOQ
$34,000.00(1 - 4 Sets) $30,000.00(>=5 Sets)
Price
borewell water well drilling rig machine price for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Construction Works
Showroom Location: Saudi Arabia, South Africa
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 220/380v
Dimension(L*W*H): 5300*2050*2700mm
Weight: 9.5 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Pump, Engine
Key Selling Points: Flexible Manufacturing
Drilling Diameter: 300mm, 100mm, 700mm, 200mm, 800mm, 130-400mm
Drilling Depth: Max.500m, 450m
Model: HQZ450L
Total Weight: 8.7t
Name: Water Well Drilling Machine
One-time Advance Length Of The Drill: 3000/6000mm
Walking Speed: 6km/h
Min.Ground Clearance: 300mm
Working Air Pressure: 1.7-3.5 Mpa
Dimensions: 5300*2050*2700mm
Local Service Location: Viet Nam, Thailand, Colombia, South Africa
After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: ISO9001
Basic Infomation
Certification: ISO9001
Model Number: HQZ450L
Payment & Shipping Terms
Packaging Details: water well drilling machine
Product Description
Product Description
Drilling Rock Speed:40M/Hour
Easy Operate
Competitive Price
Imported Accessories With CE

Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. .
The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling. Main features of drilling rig: 1. The drilling rig is mainly mechanically driven, and the others are hydraulically driven, effectively using power. The overall power loss is small and the drilling cost is low. 2. The drilling rig has more positive speed series and 14-500r/min speed range, and the output torque is 13428-250N.m. 3. The drilling rig has 2 reverse speeds for easy handling of accidents. 4. The drilling rig adopts a mechanical power head with a long-stroke double-speed mechanism, and the power head has a stroke of 3800mm, which is used to improve the drilling efficiency and reduce the occurrence of drill blocking and burning accidents. 5. The drilling rig uses double oil pumps for oil supply, a single pump is used when drilling, and a double pump is used for confluence when lifting and lowering the drill; the power loss is small and the auxiliary time is short. 6. The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair. 7. The tracked chassis is adopted, and the outrigger cylinder stroke is 1.5m, which can be loaded automatically, which is convenient for transportation. 8. The drilling rig reserves some functional interfaces in the hydraulic system, which can be expanded according to the technological requirements of different users
Technical Parameter
Model
Model
Usage
Water Well percussion rock drilling rig
Dimension(L*W*H)
5300*2050*2700mm
Weight
9.5t
Certification
ISO9001
Warranty
1 Year
Core Components
Pressure vessel, Pump, Engine
Key Selling Points
Flexible Manufacturing
Air Consumption
17-35 m3 /min
Total Weight
8.7t
Rotation
45-75rpm
Drilling Diameter
140-400mm
Drilling Depth
450m
One-time Advance Length of the Drill
3000/6000mm
Walking Speed
6km/h
Climbing Ability
25
Min.Ground Clearance
350mm
Working Air Pressure
1.7-3.5 Mpa
Products Details
Full hydraulic control is convenient and flexible: the drilling rig rotation speed, torque, thrust axial pressure, counter axial pressure, thrust speed, and lifting speed of the drilling rig can be adjusted at any time to meet the needs of different drilling tool operating conditions and different construction techniques Top drive rotary propulsion lifting: the water well drilling rig is convenient to connect and unload the drill pipe, shorten the auxiliary time, and is also conducive to follow-up drilling. Multi-functional drilling: the well drilling rig machine Various drilling techniques can be used on this drilling rig, such as: down-the-hole drilling, mud drilling, cone drilling, follow-up drilling and core drilling under development, etc. The drilling rig can be equipped with mud pumps, generators, electric welders, and cutting machines according to user needs. The rig is also equipped with various hoists as standard. High operating efficiency: the water well drilling rig Due to the full hydraulic and top drive rotary propulsion, it is suitable for various drilling techniques and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operating efficiency is high. Low cost: water well drilling rig Drilling in the rock is based on the DTH hammer drilling process. DTH rock drilling has high efficiency and the lowest cost per meter. High outrigger crawler type: water well drilling rig The high outrigger is convenient for loading and transportation, and it can be loaded directly without a crane. Crawler walking is more suitable for muddy field movement. The function of the oil mister: the drilling rig Drilling on the rock is based on the DTH hammer drilling process. The DTH rock drilling operation efficiency is high, the lubricated impactor has a longer service life and the single-meter drilling cost is low. Drill chassis: the drilling rig can be a crawler-type self-propelled chassis or a vehicle-mounted self-propelled chassis. Scope of application: the drilling rig suitable for industrial and civilian drilling, and geothermal drilling. It has the advantages of compact structure, fast footage, flexible movement, and wide application area. Especially suitable for taking water from mountainous areas and rock formations.
Packing & Delivery
Hard rock mining water well drilling rig blasting hole 300m 400m well drilling rig machine
User feedback
Our drilling rig haev export to Africa, Southeast Asia, North America, South America, all client tell the machine is save oil
,easy operate ,high speed,good service
Company Profile
Jining Hengwang Industrial and Mining Machinery Co., Ltd. is a national high-tech enterprise integrating R&D, production and
sales. It is located in Jining, Shandong, the hometown of Confucius and Mencius and the origin of Confucian culture. The company
was founded in 2011 with a registered capital of 50 million, a plant area of approximately 32,000 square meters, and more than 120
production personnel. It mainly produces more than 30 mechanical products such as various drilling and exploration equipment, pile
machines, excavators, and road rollers. It has applied for utility model patents. 8 items. The group has 6 wholly-owned
subsidiaries and more than 400 employees in international trade, e-commerce, network services, logistics and transportation.With
the implementation of my country’s “One Belt, One Road” strategy, the Group has also seized this major development opportunity,
made in-depth layouts, actively developed “cross-border e-commerce” business, expanded overseas markets, promoted the company’s
products to occupy the international market, and achieved economic Double harvest with social benefits. At present, the business
covers more than 60 countries and regions including Japan, South Korea, Brazil, Mexico, Dubai, Australia, South Africa, the Middle
East, Central Asia, Southeast Asia, and the European Union.
Our drilling rig have ISO CE EPA TUV certification
Exhibition
FAQ
Q1.What is the main function of our water well drill rig machine?
Ans.: It has different models used for water well drill rig machine,mine blast hole drill,underground drill project,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the
balance.

Q3. What is your water drilling rig terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q4. How about your well drilling rig delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q5. What is the warranty of our water well machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for
a new one.And we provide videos for machine install and operation.

Q6. What is your terms of drilling rig packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q7. Do you test all your water drilling rig goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q8.Do you Preferred provide wear parts of water drilling rig for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q9: How do you make our business long-term and good relationship of drilling rig ?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Q10.Do you have any certificates for your drilling rig machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
